E-Bike 26 INCH Fat Front Wheel Conversion Kit 48V 1000W
Features:
- Powerful Brushless Motor - Electric bicycle front wheel conversion kit features 48V 1000W brushless and gearless hub motor for efficient running; fit for any 26" bicycle frame with 5 5/16" front dropout spacing, easily convert your bicycle to electric bike and reach the maximum riding speed of 45 KM/H, suitable for regular bicycles used on commuting and short journey
- Dual Mode Controller - Motor works under Hall effect and non-Hall effect for extending life for electric bicycle; If the components break down, controller will switch into non-hall effect mode, the motor will still be working
- Pedal Assist System - Pedal assist system (PAS) for allowing to ride e-bike without a throttle response, can avoid uncomfortable wrist position and simply pedal with less fatigue for a long-distance journey; Comes with a twist throttle for easily activating the motor by twisting the grip, along with 3 indicators for displaying battery status
- Durable & Convenient - Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction
- Safe & Environmentally-Friendly - Brake levers for cutting off the power and braking when riding, can ensure riding safety; CE certificated for quality and safety assurance; battery powered design for environmental protection

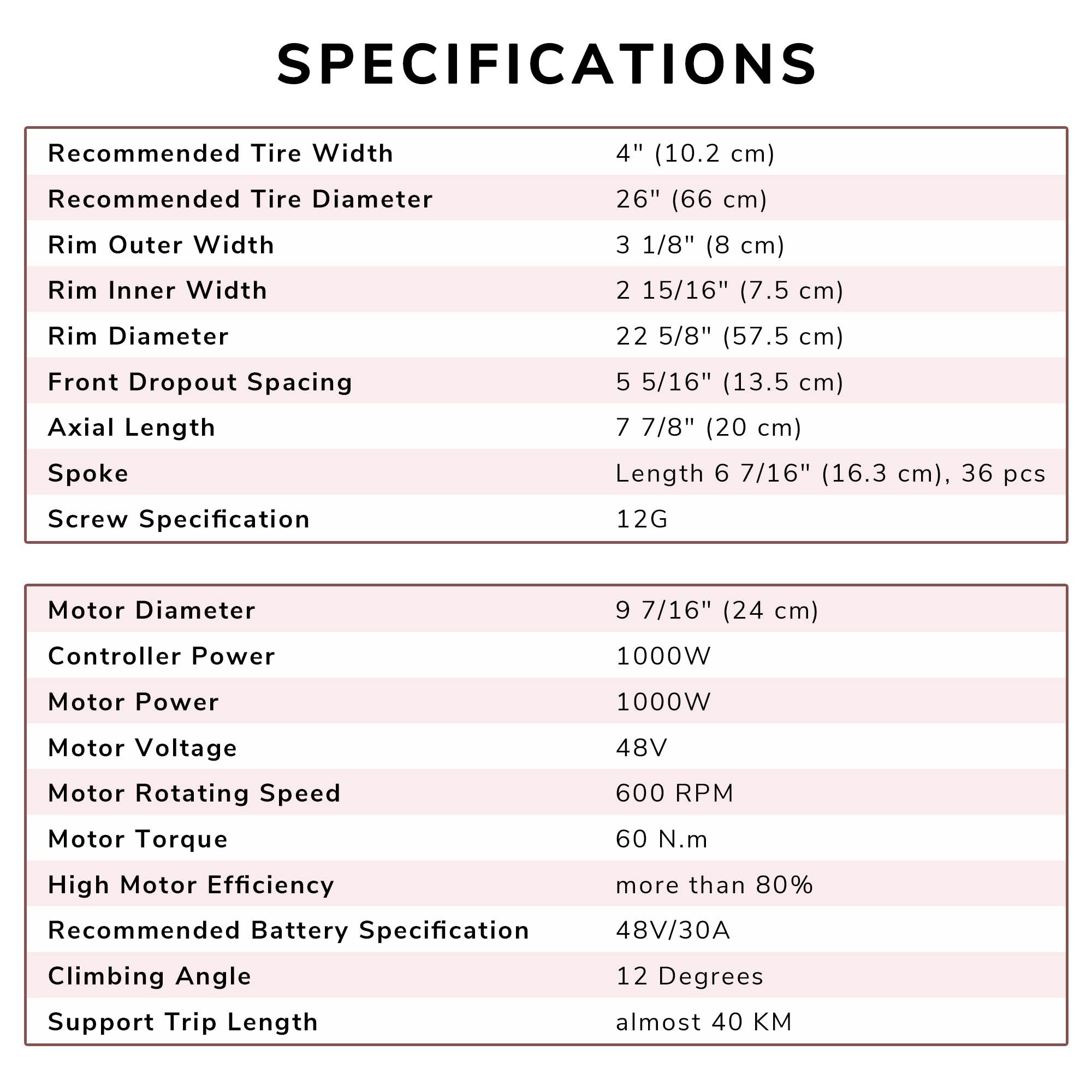

Specifications:

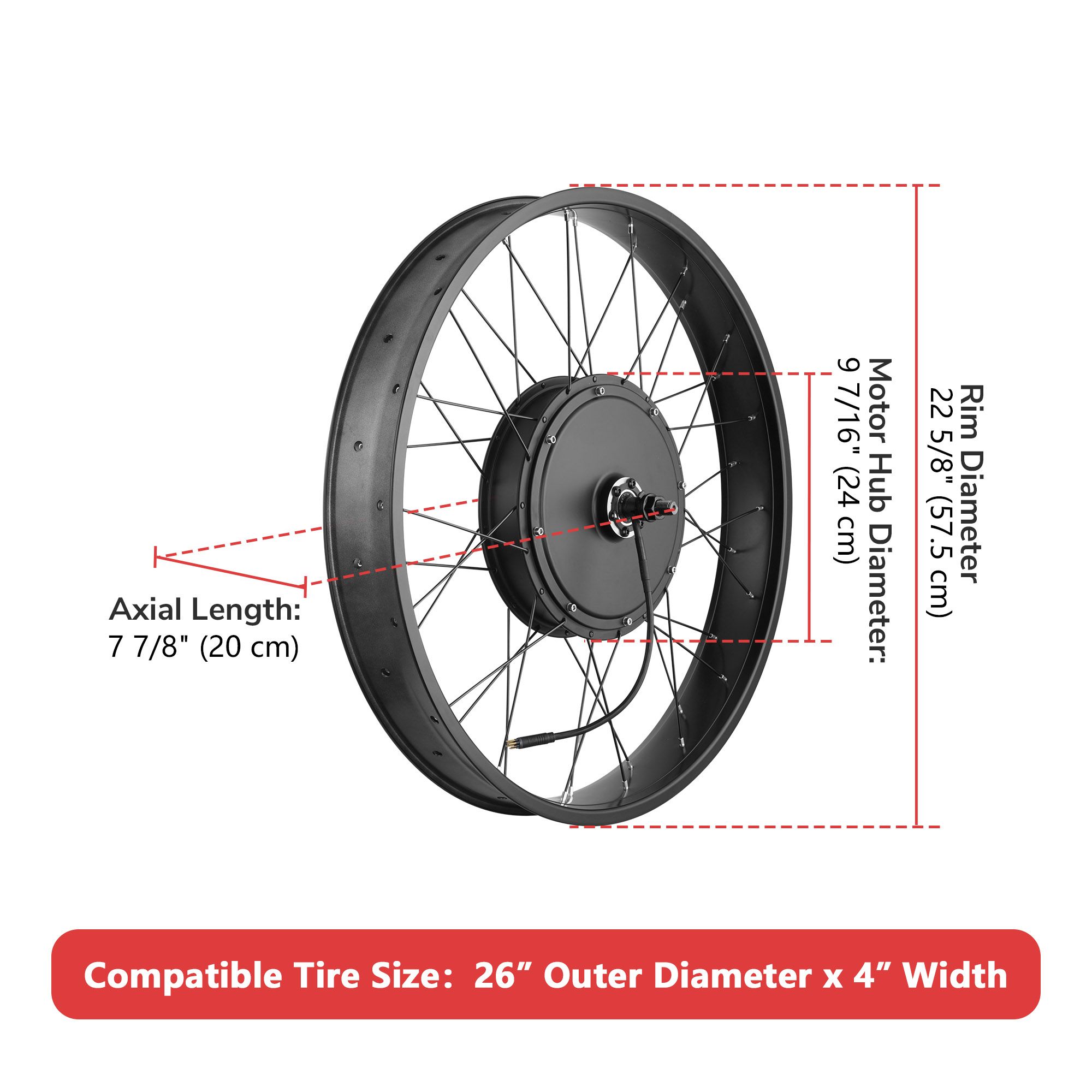

- Overall Dimension(Dia.xW): 22 5/8" x 7 7/8" (57.5 x 20 cm)
- Compatible Tire Size: 26" x 4"
- Rim Diameter: 22 5/8" (57.5 cm)
- Axial Length: 7 7/8" (20 cm)

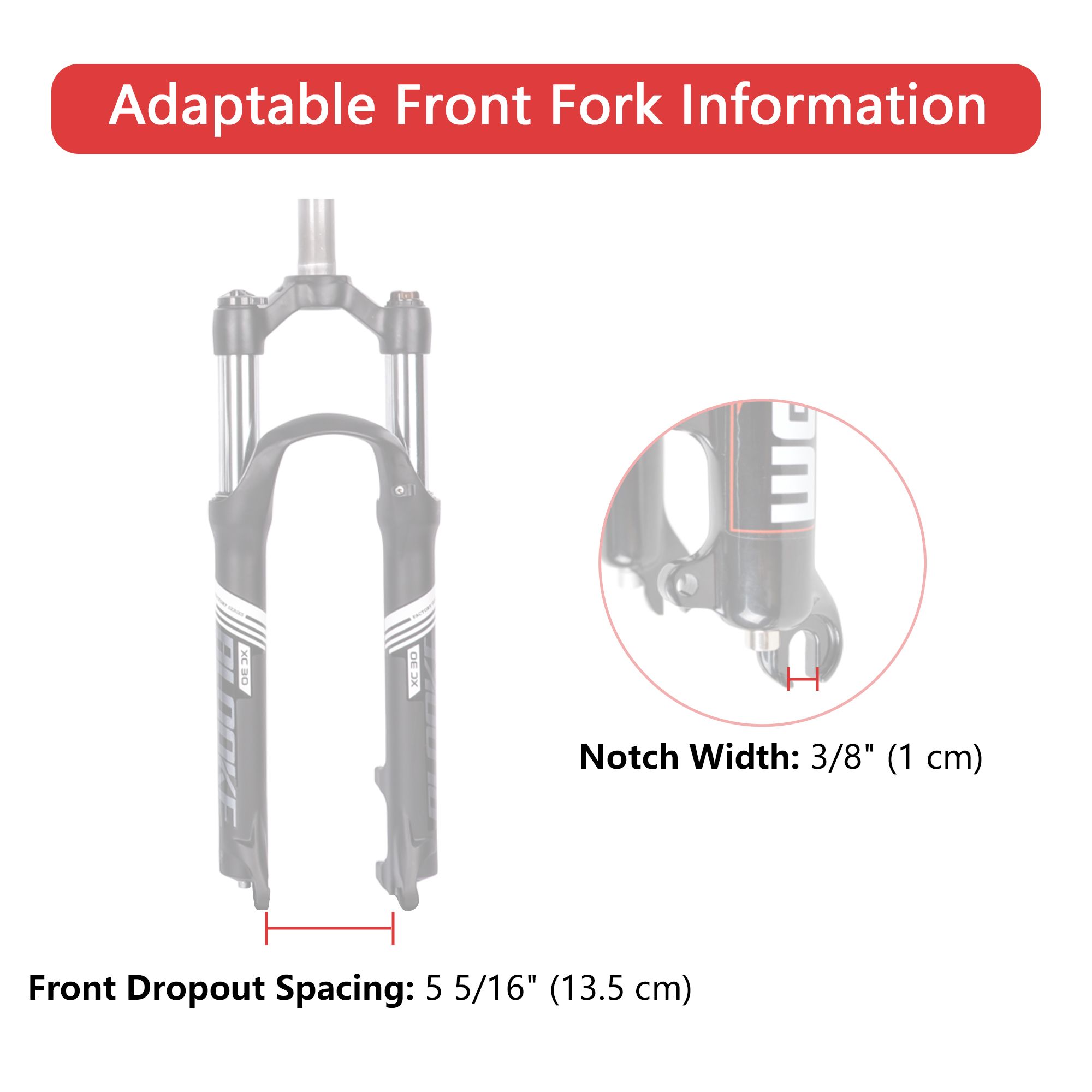

- Front Dropout Spacing: 5 5/16" (13.5 cm)
- Motor Diameter: 9 7/16" (24 cm)
- The Number of Spokes: 36
- Spoke Length: 6 7/16" (16.3 cm)
- Spoke Specification: 12G
- Controller Power: 1000W
- Motor Voltage: 48V
- Motor Rotating Speed: 600 RPM
- Motor Torque: 60 N.m
- Recommended Battery Specification: 48V/30A
- Suitable Brake Type: Disc Brake
- Weight Capacity: 220 Lbs (100 kg)
- Climbing Angle: 12 Degrees
- Net Weight: 25.35 Lbs (11.5 kg)
Package Contents:
- 1x 26" Front Wheel with Brushless Hub Motor (Tire is not included)
- 1x Dual Mode Motor Controller
- 2x Brakes Levers
- 2x Handle Grips
- 1x Twist Throttle
- 1x PAS Sensor
- 10x Wire Ties
- 2x Winding Pipes
- 1x Spoke Key
- 1x Controller Bag
- 1x 1T4 Waterproof Battery Extension Cord
- 1x Hub Wire
- 1x Manual
Notice:
- 1.Battery, charger and tire are not included, please prepare them before using.
- 2.The electric wheel is only applicable to conventional bicycles, not for tricycles, tractors, etc.
- 3.Please go to automobile repair shops with standard business license for modification.
- 4.For safety reasons, it is not recommended to use in rainy days and please wear a helmet before riding this electric bicycle for protection.
Note: The minimum limit price in the United States is$269.9.
